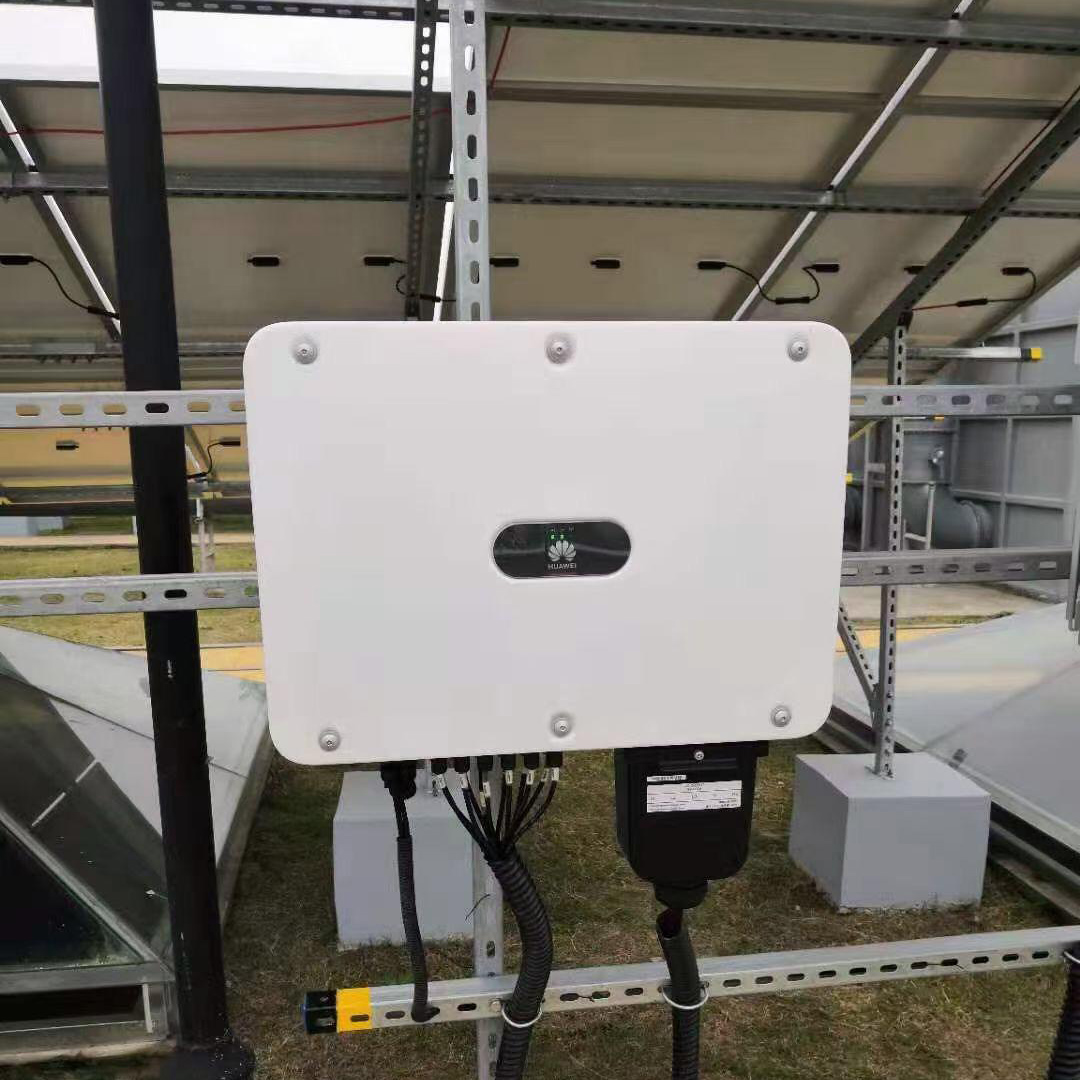

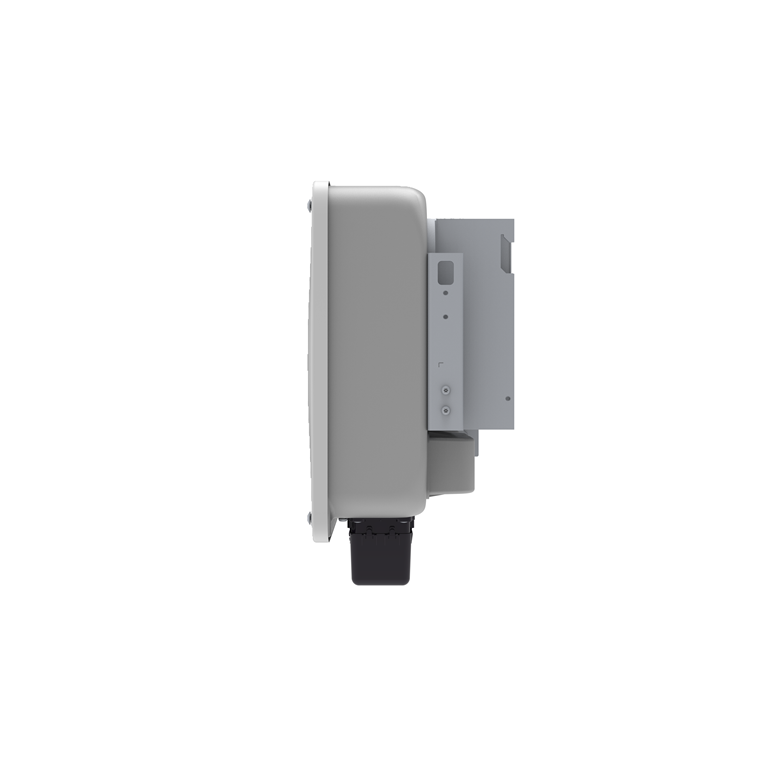

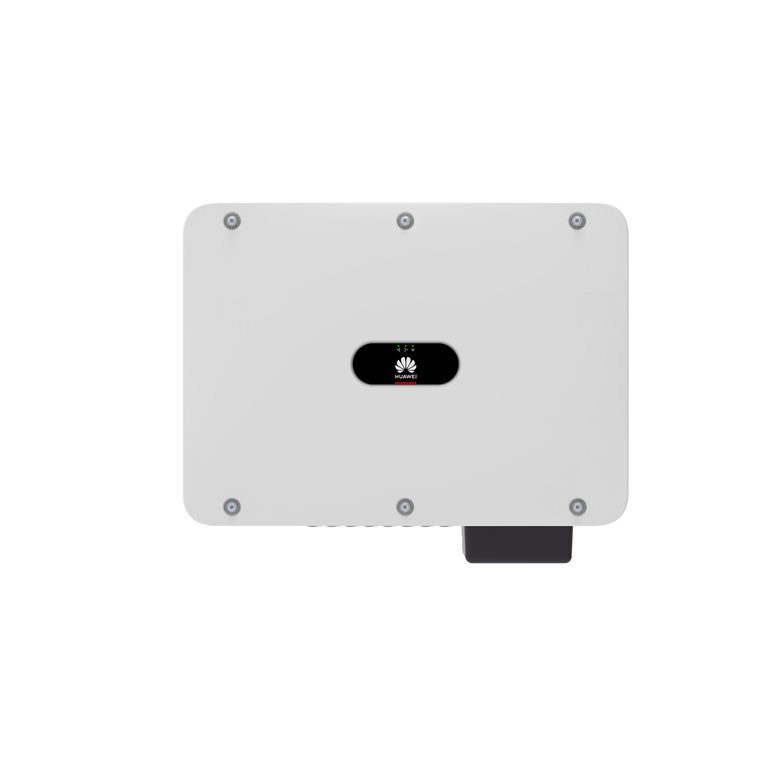

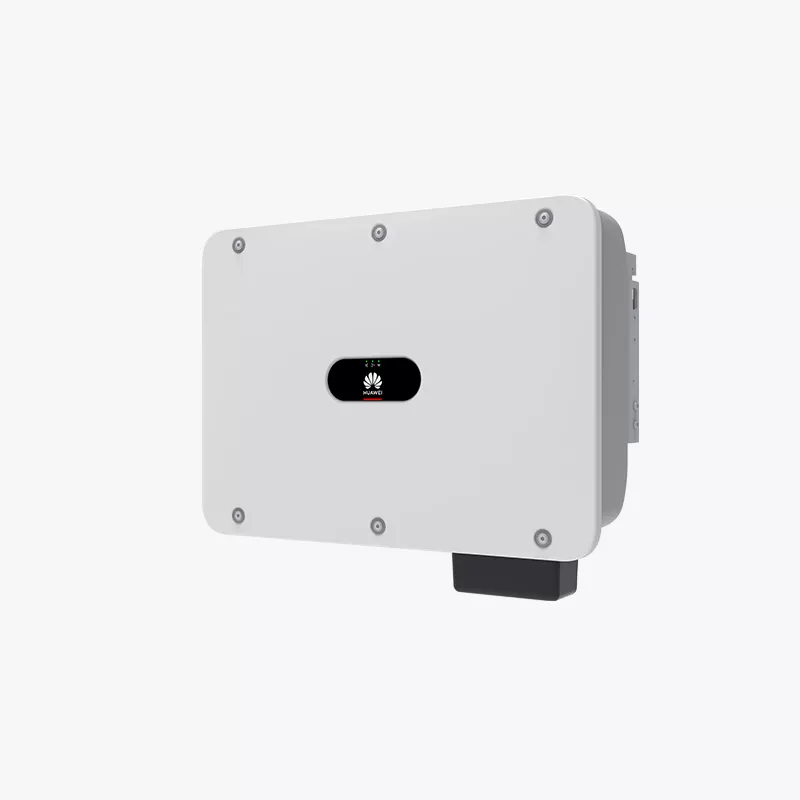

Huawei solar inverter SUN2000-50KTL-ZHM3
Huawei solar inverter SUN2000-50KTL-ZHM3
Efficiency
|
||||
Item
|
SUN2000-75KTL-C1 | SUN2000-70KTL-C1 | ||
Maximum efficiency
|
99.00% | |||
Chinese efficiency
|
98.50% |
Input
|
||||
Item
|
SUN2000-75KTL-C1 | SUN2000-70KTL-C1 | ||
Maximum input power
|
84,200 W | 78,600 W | ||
Maximum input voltagea
|
1100 V | |||
Operating voltage rangeb
|
200–1000 V | |||
Maximum input current (per MPPT)
|
25 A | 22 A | ||
Maximum input current (per string)
|
18 A | |||
Maximum short-circuit current (per MPPT)
|
39 A | 30 A | ||
Maximum SUN2000 backfeed current to the PV array
|
0 A | |||
Full power MPPT voltage range
|
625–850 V | |||
Rated input voltage
|
750 V | |||
Number of inputs
|
12 | |||
Number of MPP trackers
|
6 | |||
Note a: The maximum input voltage is the upper threshold of the DC voltage. If the input voltage exceeds the threshold, the solar inverter may be damaged.
|
||||
Note b: If the input voltage is beyond the operating voltage range, the solar inverter cannot work properly.
|
Output
|
||||
Item
|
SUN2000-75KTL-C1 | SUN2000-70KTL-C1 | ||
Rated active power
|
75 kW | 70 kW | ||
Rated active power
|
82.5 kVA | 77 kVA | ||
Maximum active power (cosφ = 1)
|
82.5 kW | 77 kW | ||
Rated output voltage
|
288 V/500 V, 3W+PE | |||
Rated output current
|
86.7 A | 80.9 A | ||
Adapted grid frequency
|
50 Hz | |||
Maximum output current
|
95.3 A | 89 A | ||
Power factor
|
0.8 leading… 0.8 lagging | |||
Maximum total harmonic distortion (rated power)
|
< 3% |
Protection
|
||||
Item
|
SUN2000-75KTL-C1 | SUN2000-70KTL-C1 | ||
Input DC switch
|
Supported | |||
Anti-islanding protection
|
Supported | |||
Output overcurrent protection
|
Supported | |||
Input reverse polarity protection
|
Supported | |||
PV string fault detection
|
Supported | |||
DC surge protection
|
Type II | |||
AC surge protection
|
Type II | |||
Insulation resistance detection
|
Supported | |||
RCMU
|
Supported | |||
Overvoltage category
|
PV II/AC III | |||
Built-in PID repaira
|
Not supported | Optional | ||
Note a: When the SUN2000 is disconnected from the grid and stops working, the built-in PID can achieve the PV– positive offset of the PV module. (PV– positive offset refers to raising the voltage between PV– and the ground to above 0 V through voltage compensation.) When designing a power plant, confirm with the PV module manufacturer that the anti-PID voltage compensation direction of the PV module is the same as the direction of the PV– positive offset. Otherwise, PV modules may be damaged.
|
Display and Communication
|
||||
Item
|
SUN2000-75KTL-C1 | SUN2000-70KTL-C1 | ||
Display
|
LED indicator, Bluetooth module+app, USB data cable+app, and WLAN module+app | |||
RS485
|
Optional | |||
MBUS
|
Supported |
Common Parameters
|
||||
Item
|
SUN2000-75KTL-C1 | SUN2000-70KTL-C1 | ||
Dimensions (W x H x D)
|
1075 mm x 555 mm x 300 mm | |||
Net weight
|
73 kg±1 kg | |||
Operating temperature
|
–25°C to +60°C | |||
Cooling mode
|
Natural convection | |||
Maximum operating altitude
|
4000 m | |||
Humidity
|
0%–100% RH | |||
Input terminal
|
Amphenol Helios H4 | |||
Output terminal
|
Cable gland+OT terminal | |||
Ingress Protection Rating
|
IP65 | |||
Topology
|
Transformerless |
