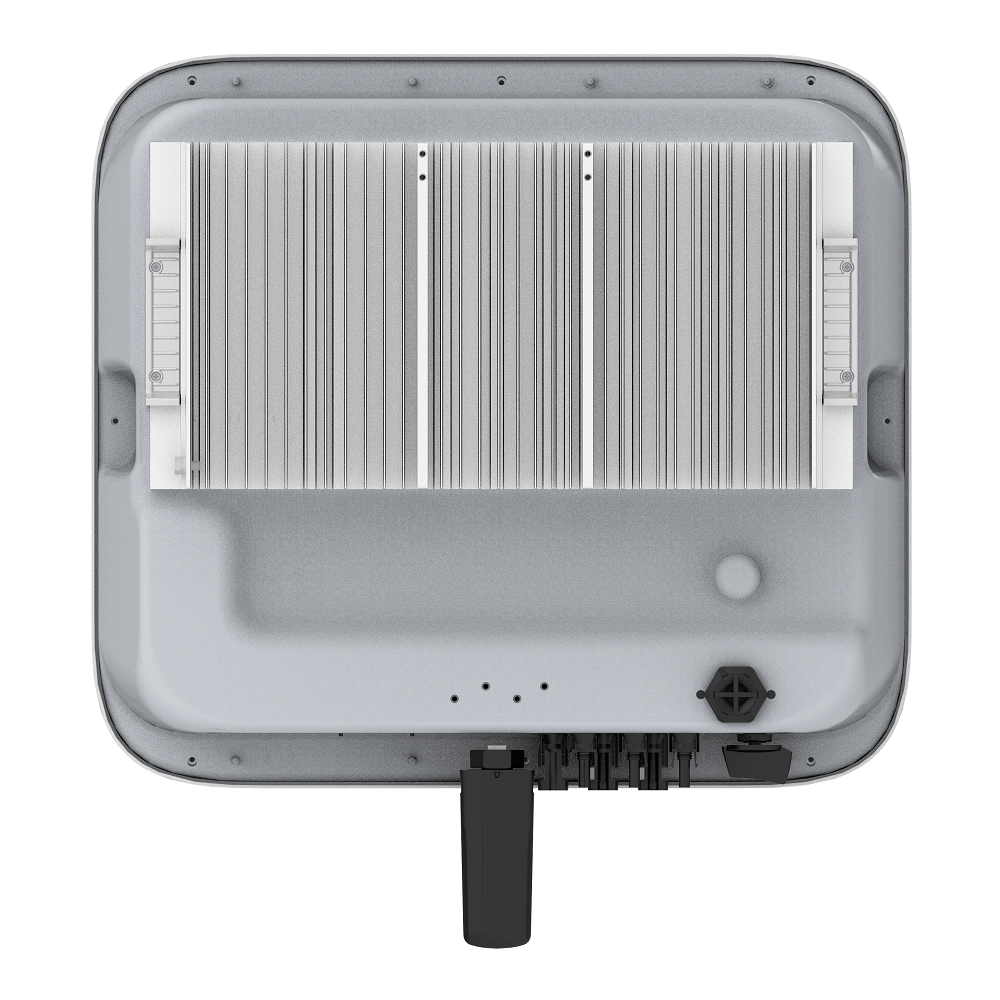

Huawei Solar Inverter SUN2000-8KTL-M1
Huawei Solar Inverter SUN2000-8KTL-M1
Basic System Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. – Generator or Utility – PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.
Key product features and benefits
What can Dawnice do?
|
Technical Parameter
|
SUN2000-5KTL-M1 | SUN2000-6KTL-M1 | SUN2000-8KTL-M1 | SUN2000-10KTL-M1 | SUN2000-12KTL-M1 |
|
Effectiveness
|
|||||
|
Maximum efficiency
|
98.40% | 98.60% | 98.60% | 98.60% | 98.60% |
|
European efficiency
|
97.50% | 97.70% | 98.00% | 98.10% | 98.20% |
|
Input (inverter)
|
|||||
|
Maximum recommended component power 1
|
7500 Wp | 9000 Wp | 12000 Wp | 15000 Wp | 18000 Wp |
|
Maximum DC input voltage 2
|
1100 V | ||||
|
MPPT voltage range 3
|
140 V ~ 980 V | ||||
|
Starting voltage
|
200 V | ||||
|
Rated input voltage
|
600 V | ||||
|
Maximum input current of each MPPT
|
11 A | ||||
|
Maximum short circuit current
|
15 A | ||||
|
Number of MPPT
|
2 | ||||
|
Maximum number of input channels
|
2 | ||||
|
Input (energy storage battery)
|
|||||
|
Adapted energy storage system
|
Huawei Smart String Energy Storage System 5kWh-30kWh | ||||
|
Operating voltage range
|
600 V ~ 980 V | ||||
|
Maximum working current
|
16A | ||||
|
Maximum charging power
|
10000 W | ||||
|
Maximum discharge power
|
5500 W | 6600 W | 8800 W | 10000 W | 10000 W |
|
Output
|
|||||
|
Adapter grid
|
Three phase | ||||
|
Rated output power
|
5000 W | 6000 W | 8000 W | 10000 W | 12000 W |
|
Maximum output apparent power
|
5500 VA | 6600 VA | 8800 VA | 11000 VA | 12000 VA |
|
Rated output voltage
|
220 Vac/ 380 Vac, 230 Vac/ 400 Vac, 3W / N+PE | ||||
|
Output voltage frequency
|
50 Hz / 60 Hz | ||||
|
Maximum output current
|
8.5A | 10.1A | 13.5A | 16.9A | 18.4A |
|
Power factor
|
0.8 leading… 0.8 lagging | ||||
|
Maximum total harmonic distortion
|
≤3 % | ||||
|
Off-grid power output
|
Yes (via Backup Box-B1 4) | ||||
|
Output (Off-grid box Backup Box-B1)
|
|||||
|
Maximum output apparent power
|
3300 VA | ||||
|
Rated output voltage
|
220 V / 230 V | ||||
|
Maximum output current
|
15 A | ||||
|
Power factor
|
0.8 leading… 0.8 lagging | ||||
|
Protection & Features
|
|||||
|
Input DC switch
|
Yes | ||||
|
Anti-islanding protection
|
Yes | ||||
|
Input reverse protection
|
Yes | ||||
|
Insulation resistance detection
|
Yes | ||||
|
DC surge protection
|
Yes, equivalent to TYPE II protection level in EN/IEC 61643-11 | ||||
|
AC surge protection
|
Yes, equivalent to TYPE II protection level in EN/IEC 61643-11 | ||||
|
Residual current detection
|
Yes | ||||
|
AC overcurrent protection
|
Yes | ||||
|
AC short circuit protection
|
Yes | ||||
|
AC overvoltage protection
|
Yes | ||||
|
AFCI DC arc protection
|
Yes | ||||
|
Dry node remote scheduling
|
Yes | ||||
|
Built-in PID repair 4
|
Yes | ||||
|
Grid AC reverse charging
|
Yes | ||||
|
General parameters
|
|||||
|
Operating temperature
|
-25 ~ + 60 °C (5-10KTL model derating above 45℃ under rated load, 12KTL model derating above 40℃ under rated load) | ||||
|
Relative humidity
|
0 %RH～100%RH | ||||
|
Working altitude
|
0 ～4000 m (derating above 2000 m) | ||||
|
Cooling method
|
Natural convection | ||||
|
Display
|
LED indicator; built-in WLAN + FusionSolar APP | ||||
|
External communication can be expanded
|
Optional: 4G Standard: RS485 Optional: 4G smart communication stick WLAN-FE smart communication stick |
||||
|
Weight (including mounting parts)
|
17 kg | ||||
|
Dimensions (including mounting parts) (width x height x thickness)
|
525 x 470 x 166 mm | ||||
|
Protection level
|
IP65 | ||||
|
Matching optimizer
|
|||||
|
Adaptation optimizer model
|
SUN2000-450W-P | ||||
|
Standards met
|
|||||
|
Safety
|
EN/IEC 62109-1, EN/IEC 62109-2 | ||||
|
Grid-connected standard
|
NB/T 32004 | ||||
