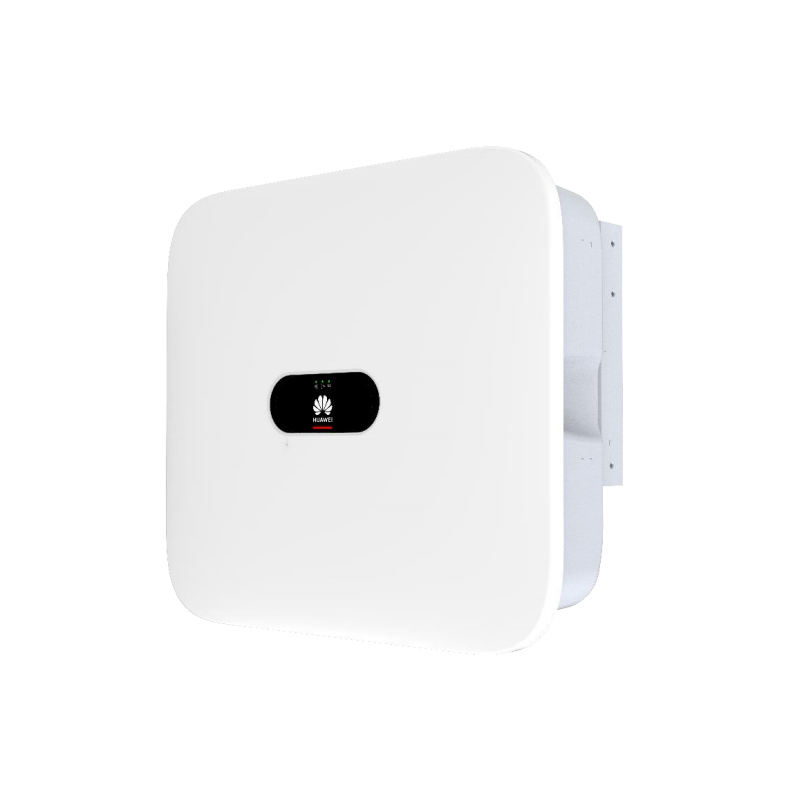

Huawei Solar Inverter Sun2000-20KTL-M2

Huawei Solar Inverter Sun2000-20KTL-M2

Huawei Sun2000-20KTL-M2
Huawei Sun2000-20KTL-M2
Huawei Sun2000-20KTL-M2
Huawei Sun2000-20KTL-M2
Huawei Sun2000-20KTL-M2
Huawei Sun2000-20KTL-M2

$1,599.00  $1,259.00

Huawei Sun2000-20KTL-M2 20kw On Grid Solar Power Inverter For Solar Energy System

  • Model Number: SUN2000-12/15/17/20KTL-M2
  • Rated PV Input Voltage (V): 600V(160 V ~ 950 V)
  • Output Frequency and Voltage: 50 / 60Hz; 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE
  • Grid Type: Three Phase
  • Size: 525×470×262(mm)
  • Type: DC/AC Inverters
  • Inverter Efficiency:98.30%
  • Safety:EN/IEC 62109-1, EN/IEC 62109-2
  • Grid connection standards:G98, G99, EN 50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, AS 4777.2, C10/11, ABNT, VFR 2019, RD 1699, RD 661, PO 12.3, TOR D4, IEC61727, IEC62116, DEWA
  • Weight: 25kg
  • Protection Degree: IP65

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Basic System Architecture

The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. – Generator or Utility – PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.

Key product features and benefits

  • Colorful touch LCD, IP65 protection degree
  • 6 time periods for battery charging/discharging
  • Max. charging/discharging current of 190A
  • Max.16pcs parallel
  • DC couple and AC couple to retrofit existing solar system
  • Support storing energy from diesel generator
  • Max. battery charge efficiency of 95.4%
  • Unique Smart Load application and Grid peak shaving function
  • 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
  • Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.

What can Dawnice do?

  • High Quality Products
  • DDP Service
  • Friendly and Professional Customer Service
  • Solar system solution design
  • Solar inverter, lithium battery storage system also are available.
  • Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
Technical Specification SUN2000-12KTL-M2 SUN2000-15KTL-M2 SUN2000-17KTL-M2 SUN2000-20KTL-M2
Efficiency
Max. efficiency 98.50% 98.65% 98.65% 98.65%
European weighted efficiency 98.00% 98.30% 98.30% 98.30%
Input
Recommended max. PV power 18,000 Wp 22,500 Wp 25,500 Wp 30,000 Wp
Max. input voltage 1,080 V
Operating voltage range 160 V ~ 950 V
Start-up voltage 200 V
Rated input voltage 600 V
Max. input current per MPPT 22 A
Max. short-circuit current 30 A
Number of MPP trackers 2
Max. input number per MPP tracker 2
Output
Grid connection Three phase
Rated output power 12,000 W 15,000 W 17,000 W 20,000 W
Max. apparent power 13,200 VA 16,500 VA 18,700 VA 22,000 VA
Rated output voltage 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE
Rated AC grid frequency 50 Hz / 60 Hz
Max. output current 20 A 25.2 A 28.5 A 33.5 A
Adjustable power factor 0.8 leading … 0.8 lagging
Max. total harmonic distortion ≤ 3 %
Features & Protections
Input-side disconnection device Yes
Anti-islanding protection Yes
AC over-current protection Yes
AC short-circuit protection Yes
AC over-voltage protection Yes
DC reverse-polarity protection Yes
DC surge protection TYPE II
AC surge protection Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
Residual current monitoring unit Yes
Arc fault protection Yes
Ripple receiver control Yes
Integrated PID recovery Yes
General Data
Operation temperature range -25 ~ +60 °C (-13 °F ~ 140 °F)
Relative humidity 0 % RH ~ 100% RH
Max. operating altitude 4,000 m (13,123 ft.) (Derating above 2000 m)
Cooling Natural Convection
Display LED Indicators; Integrated WLAN + FusionSolar App
Communication RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional)
Weight (with mounting plate) 25 kg
Dimensions (W x H x D) (incl. mounting plate) 525 x 470 x 262 mm (20.7 x 18.5 x 10.3 inch)
Degree of protection IP65
Nighttime Power Consumption < 5.5 W 5
Optimizer Compatibility
DC MBUS compatible optimizer SUN2000-450W-P
Standard Compliance (more available upon request)
Safety EN/IEC 62109-1, EN/IEC 62109-2
Grid connection standards G98, G99, EN 50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, AS 4777.2, C10/11, ABNT, VFR 2019, RD 1699, RD 661, PO 12.3,
TOR D4, IEC61727, IEC62116, DEWA
*1 Inverter max input PV power is 40,000 Wp when long strings are designed and fully connected with SUN2000-450W-P power optimizers.
*2 The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would probably damage inverter.
*3 Any DC input voltage beyond the operating voltage range may result in inverter improper operating.
*4 SUN2000-12~20KTL-M2 raises potential between PV- and ground to above zero through integrated PID recovery function to recover module degradation from PID. Supported module types include: P-type (mono, poly)
*5. <10 W when PID recovery function is activated.
