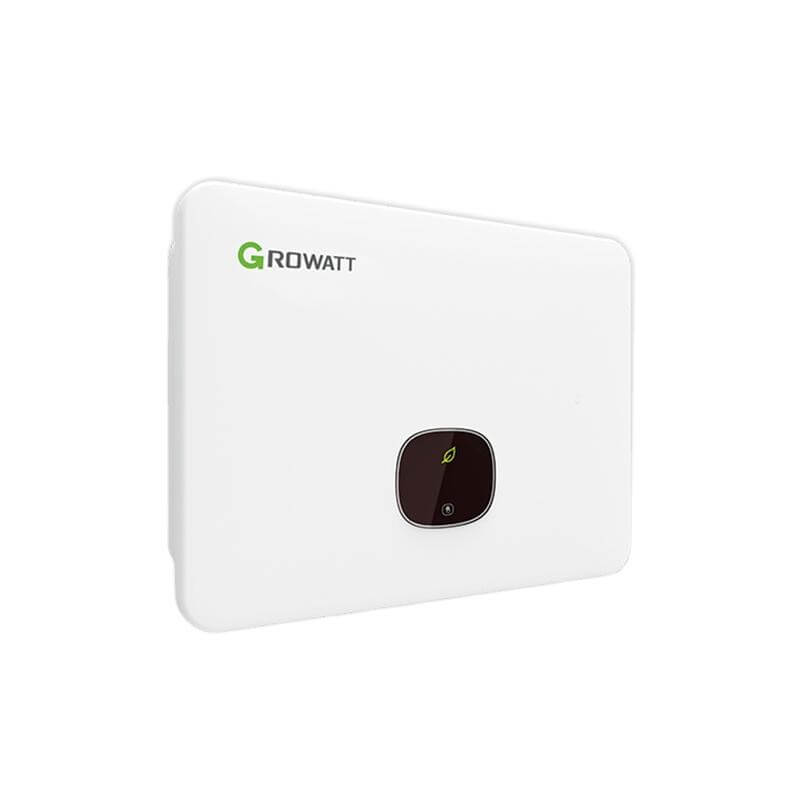

Growatt MID 30KTL3 X PV On Grid 30KW Inverter For Sale

Model Number: MID 25-40KTL3-X
Input Voltage: 1100V
Output Voltage: 230V/400V; 340-440V
Output Current: 40AA~66.6A
Output Frequency: 50/60 Hz; 45~55Hz/55-65 Hz
Size: 580/435/230mm
Certificate: CE/VDE0126/IEC/EN50549-1
Warranty: 5 years / 10 years
Weight: 30.5kg
Max. DC voltage: 1100V
MPPT voltage range: 200-1000V
AC grid connection type: 3W+N+PE
MPPT efficiency: 99.9%

Inquire

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Email

Contact Us

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Email

Contact Us

Products Description

Datasheet	MID 25KTL3-X1	MID 30KTL3-X	MID 33KTL3-X	MID 36KTL3-X	MID 40KTL3-X
Input data (DC)
Max. recommended PV power(for module STC)	37500W	45000W	49500W	54000W	60000W
Max. DC voltage	1100V
Start Voltage	250V
Normal Voltage	600V
MPPT voltage range	200-1000V
No. of MPP trackers/strings per MPP tracker	3	3	3	4	4
Max.input current per MPP tracker	26A
Max. short-circuit current per MPP tracker	32A
Output data (AC)
Rated AC output power	25000W	30000W	33000W	36000W	40000W
Max. AC apparent power	27700VA	33300VA	36600VA	39600VA	44000VA
Nominal AC voltage(range*)	220V/380V, 230V/400V (340-440V)
AC grid frequency;(range*)	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	40A	50.5A	55.5A	60.0A	66.6A
Adjustable power factor	0.8 leading – 0.8 lagging
THDi	<3%
AC grid connection type	3W+N+PE
Efficiency
Max.efficiency	98.8%
European efficiency	98.5%
MPPT efficiency	99.9%
General data
Dimensions (W / H / D)	580/435/230mm
Weight	29.5kg	29.5kg	29.5kg	30.5kg	30.5kg
Self-Consumption (night)	< 1W
Operating temperature range	–25 °C … +60 °C
Topology	Transformerless
Cooling	Smart air cooling
Protection degree	IP65
Relative Humidity	0~100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Cable gland+OT terminal
Display	OLED+LED/WIFI+APP
Interfaces: RS485 / USB /WiFi/ GPRS / RF/ LAN	Yes/Yes /Optional/Optional/Optional/Optional
Warranty: 5 years / 10 years	Yes/Optional
