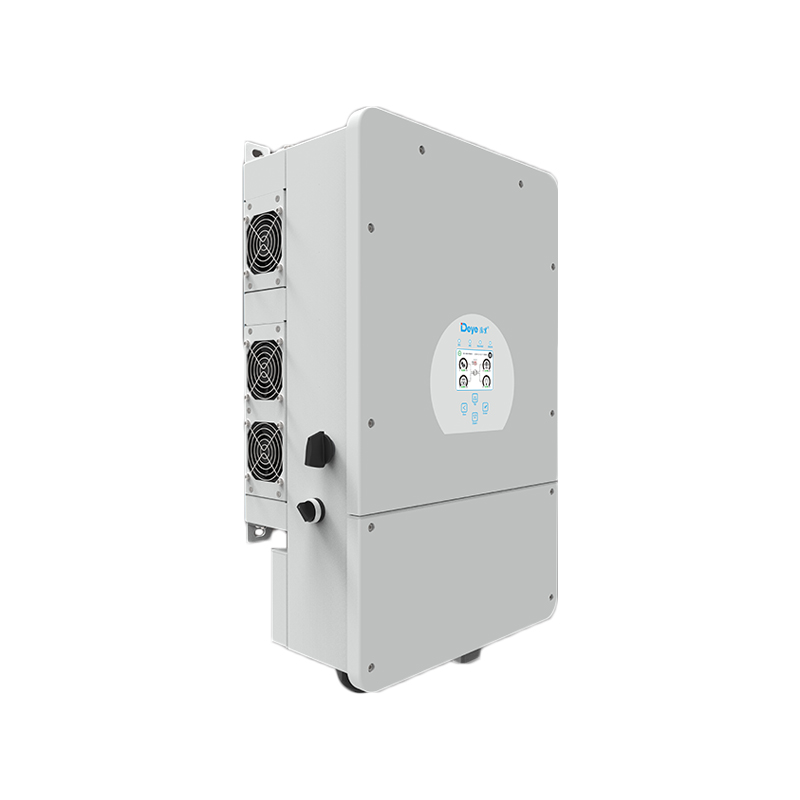

Deye 10kw Hybrid Inverter Description
1.Deye inverter is easy to operate, convenient and fully functional.
2.Suitable for solar energy system, household, commercial, agricultural, outdoor use, etc.
3.Smart diagnosis, high switch frequency, WiFi/GPRS Real time monitoring.
4.High efficiency up to 99%. Ingress protection IP65.
5.App store support IOS/Android.
6.Dawnice solar energy system product supply chain has received favors and praises from various overseas home use customers, small business customers , government projects.
Basic System Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. – Generator or Utility – PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.
Sun 5 6 8 10 12k Sg04lp3 Features
What can Dawnice do?
|
Model
|
SUN-8K -SG04LP3-EU | SUN-10K -SG04LP3-EU | SUN-12K -SG04LP3-EU |
|
Battery Input Data
|
|||
|
Battery Type
|
Lead-acid or Li-lon | ||
|
Battery Voltage Range (V)
|
40-60 | ||
|
Max. Charging Current (A)
|
190 | 210 | 240 |
|
Max. Discharging Current (A)
|
190 | 210 | 240 |
|
External Temperature Sensor
|
Yes | ||
|
Charging Curve
|
3 Stages / Equalization | ||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS | ||
|
PV String Input Data
|
|||
|
Max. DC Input Power (W)
|
10400 | 13000 | 15600 |
|
Rated PV Input Voltage (V)
|
550 (160~800) | ||
|
Start-up Voltage (V)
|
160 | ||
|
MPPT Voltage Range (V)
|
200-650 | ||
|
Full Load DC Voltage Range (V)
|
350-650 | ||
|
PV Input Current (A)
|
13+13 | 26+13 | |
|
Max. PV ISC (A)
|
17+17 | 34+17 | |
|
Number of MPPT / Strings per MPPT
|
2/1+1 | 2/2+1 | |
|
AC Output Data
|
|||
|
Rated AC Output and UPS Power (W)
|
8000 | 1000 | 12000 |
|
Max. AC Output Power (W)
|
8800 | 11000 | 13200 |
|
AC Output Rated Current (A)
|
12.1 | 15.2 | 18.2 |
|
Max. AC Current (A)
|
18.2 | 22.7 | 27.3 |
|
Max. Continuous AC Passthrough (A)
|
45 | ||
|
Peak Power (offff grid)
|
2 time of rated power, 10 S | ||
|
Power Factor
|
0.8 leading to 0.8 lagging | ||
|
Output Frequency and Voltage
|
50/60Hz; 3L/N/PE 220/380, 230/400Vac | ||
|
Grid Type
|
Three Phase | ||
|
DC injection current (mA)
|
THD<3% (Linear load<1.5%) | ||
|
Effiffifficiency
|
|||
|
Max. Effiffifficiency
|
97.6% | ||
|
Euro Effiffifficiency
|
97% | ||
|
MPPT Effiffifficiency
|
99.9% | ||
|
Protection
|
|||
|
Integrated
|
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Surge protection |
||
|
Certififications and Standards
|
|||
|
Grid Regulation
|
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 |
||
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
|
General Data
|
|||
|
Operating Temperature Range (℃)
|
-45~60℃, >45℃ derating | ||
|
Cooling
|
Smrat cooling | ||
|
Noise (dB)
|
<45 dB | ||
|
Communication with BMS
|
RS485; CAN | ||
|
Weight (kg)
|
33.6 | ||
|
Size (mm)
|
422W x 699.3H x279D | ||
|
Protection Degree
|
IP65 | ||
|
Installation Style
|
Wall-mounted | ||
|
Warranty
|
5 years | ||
