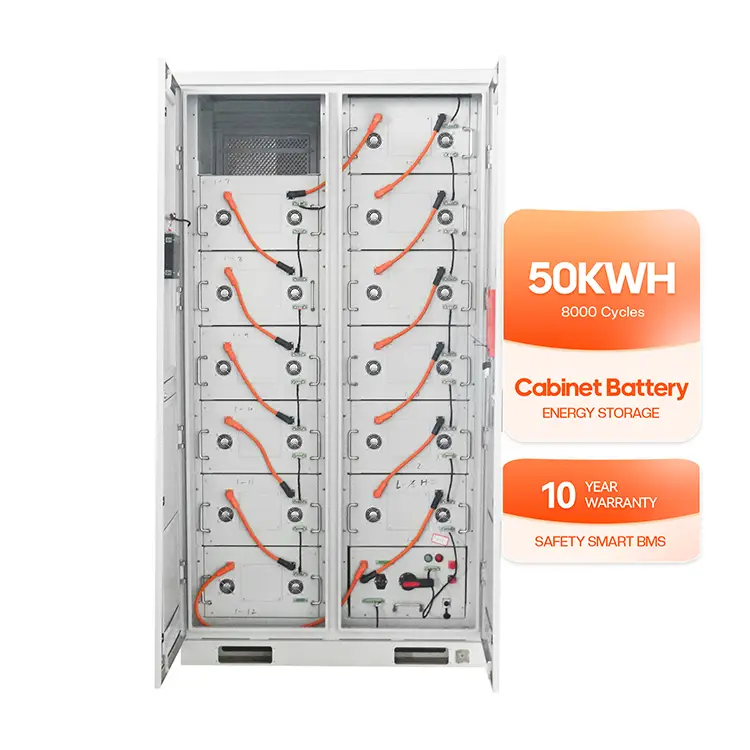

MODEL | 51.2V 1000AH | ||
Battery Type | LiFePO4 | ||
Energy | 51200Wh | ||
Rated Capacity | 1000Ah | ||
Rated Voltage | 51.2V | ||

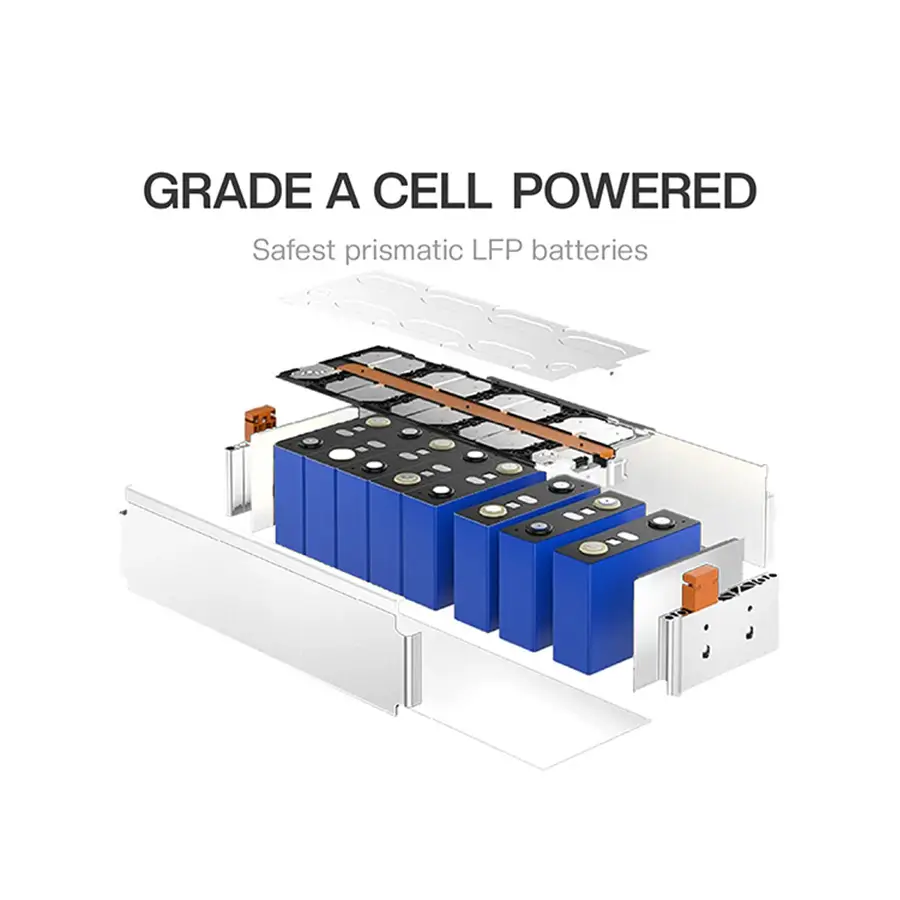

Battery cell | 3.2V 100Ah Pirsmatic Battery Cell | ||
Configuration (*S*P) | 16S | ||
Disharge | 48V | ||
Charge Cut-off Protect Voltage | 58.4V | ||
Max. Charge Current | 1000A | ||
Max. Discharge Current | 1000A | ||

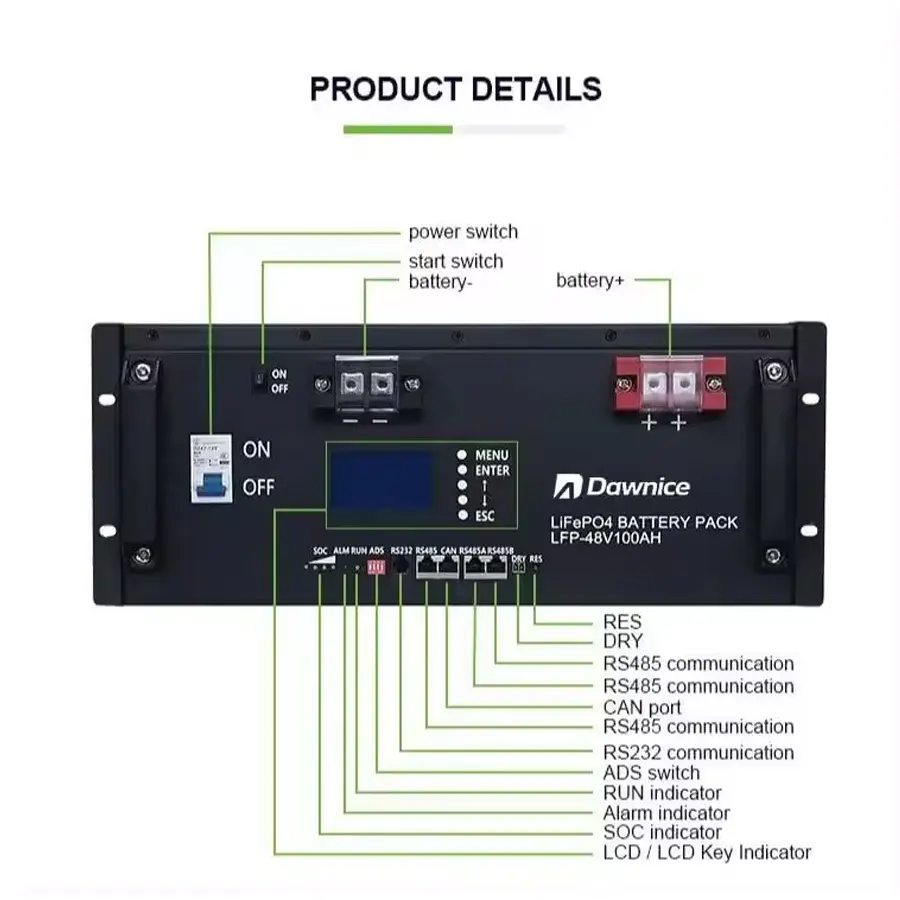

Communication Port | CAN, RS485 | ||
Compitable Inverter Brand | SMA, Growatt, Solax, Solis,DEYE,Sungrow, Sofar, Voltronic, Goodwe, etc. | ||

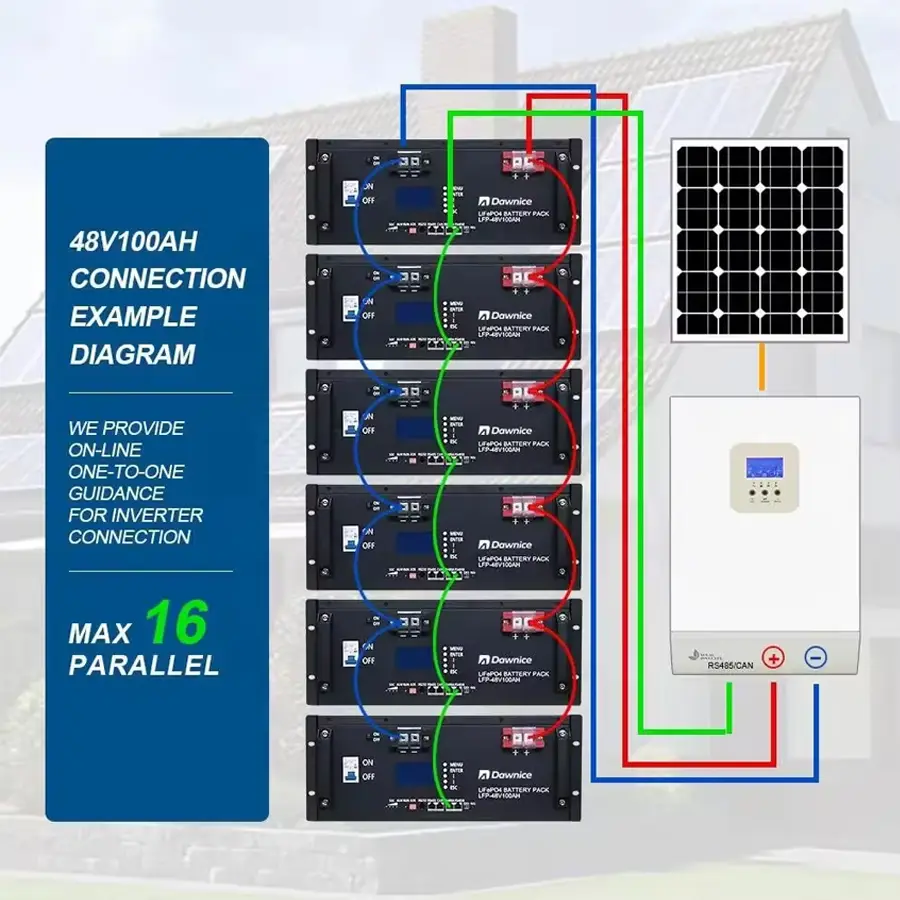

Parallel | 51kwh. 10kw | ||
Cycle life | over 8000 times | ||
L*W*H (mm) | OEM | ||
Net Weight (KG) | 550 | ||
Cooling | Natural cooling | ||
Environment | Indoor | ||
Mounting options | Ground mount | ||
Discharge Temperature (℃) | -10℃~+60℃ | ||
Charge Temperature (℃) | 0℃ ~+45℃ | ||
Storage Conditions | –20°C to 30°C (–4°F to 86°F) Up to 95% RH, non-condensing State of Energy (SoE): 25% initial | ||
Maximum Elevation | 3000 m (9843 ft) |
