5KVA Hybrid Solar System
5kw lifepo4 home power battery
Deye Inverter
solar panel
PV system installation tools
solar energy system
5KVA Hybrid Solar System

Dawnice 5KW Solar Energy System Full Set 5KVA Hybrid Solar System 5000w With 5Kwh Lithium Battery

  • Product name: Dawnice hybrid solar system

  • Model Number: DW01LV-5KW LP1-EU

  • Application: Home,Commercial,Industrial,Other
  • Battery Type: Lithium Ion, Lithium Ion Battery Lithium-Polymer
  • Inverter Type: Hybrid inverter with MPPT controller
  • Controller Type: MPPT
  • Mounting Type: Ground Mounting/Roof Mounting

  • PV Power (KW): 5

  • Output Frequency: 50HZ/60HZ
  • Certificate: UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
  • Type: Hybrid solar system
  • Solar Solution:Customized

  • Battery Input Voltage(V): 40-60(EU)

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

48V 200Ah 10Kwh Solar Energy Battery

48V 100Ah 5Kwh Solar Energy Battery

1. Capacity: 51.2V 100Ah(5kwh)
2. Grade A Cells
3. With Bms Inside
4. 6000+ Cycle Time
5. 10 Years Warranty

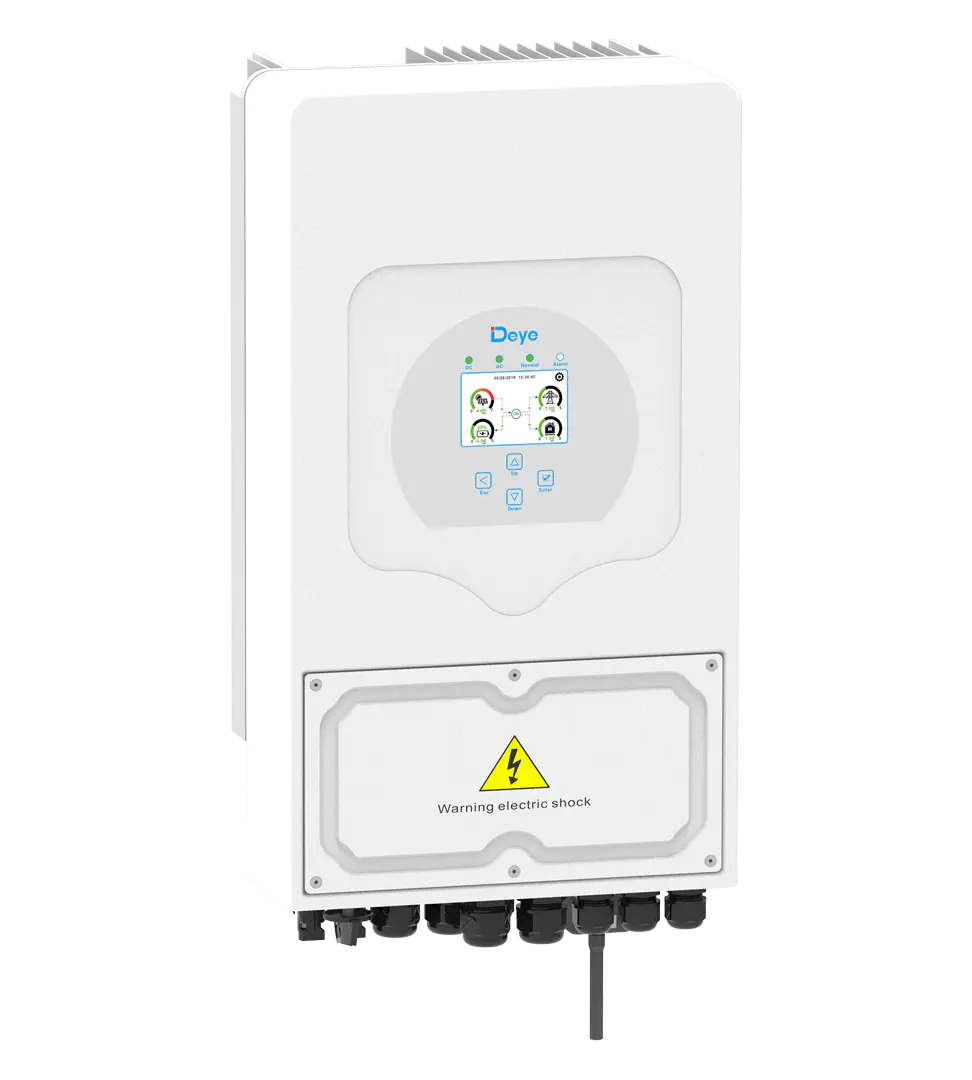

Model NumberSUN56K

Solar Inverter

Model Number: SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU
Rated PV Input Voltage (V): 370 (125~500)
Output Frequency and Voltage: 50 / 60Hz; L1/L2/N(PE) 120/240Vac (split phase), 208Vac (2/3 phase), L/N/PE 220/230Vac (single phase)
Grid Type: Split phase; 2/3 phase; Single Phase

All Black Solar Panel

All Black Solar Panel

  • 1. 410W Mono Facial
  • 2. Half Cell All Black
  • 3. SIZE:1723*113*30MM(25 Year Warranty)
  • 4. (MOQ:1 Pallet 31pcs/Pallet)
PV system installation tools

PV System Installation Tools

  • 1. Disassemble Tool
  • 2. MC3 MC4 Crimper
  • 3. Wire Cable Cutter & Stripper
  • 4. MC4 Connector Assembly
MC4 Connector

MC4 Connector:

  • 1. Rated Current: 30A
  • 2. Rated Voltage: 1500VDC

PV Cable:

  • 1. AC Cable
  • 2. DC Switches
  • 3. AC Breaker
  • 4. AC/DC Combine Box
  • 5. PV Cable 4MM2 6MM2
Mounting Structure

Mounting Structure

  • 1. Ground Solar Mounting System
  • 2. Residential Roof(Pitched Roof)
  • 3. Car Parking Solar Mounting System
  • 4. Vertical Wall Solar Mounting System
  • 5. Commercial Roof(Flat Roof&Workshop Roof)
  • 6. All Aluminum Structure Solar Mounting System

How to install

1. Install the brackets

install1

2. Install the PV components

install2

3. PV Junction Box

install3

4. Inverter and Battery

install4

Dawnice advantage:

1.Intelligent and efficient：

  • Storage of surplus electricity, improve the use rate of PV power .
  • PV and mains can charge the battery
  • Flexible configuration of lead-acid and lithium-ion batteries
  • All in one design: charging, control , inverter
  • Compatible with off-grid and on-grid modes

2.Flexible operation：

  • Various communication ：Wi-Fi/Ethernet/GPRS/RS485
  • Peak and valley time can be set, automatic peak cutting and valley filling.
  • Remote control by computer or phone
  • LCD display,easy operation

3. Stable and reliable.

  • High protectionand A grade battery cell
  • Smart BMS to ensure battery life
  • Heat dissipation, reduce failure rate
  • 4.EU/US MARKET AVAILABLE
  • Completely system , high transformation efficiency,
  • More than 6000 cycle life .
  • 48V low voltage battery, transformer isolation design
Main003
part1

What can Dawnice do?

  • High Quality Products
  • DDP Service
  • Friendly and Professional Customer Service
  • Solar system solution design
  • Solar inverter, lithium battery storage system also are available.
  • Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
Dawnice 5-12KW Hybrid Solar Energy System
Parameters Model DW01LV-5KW-10 LP1-EU/US DW01LV-8KW-20 LP1-EU/US DW01LV-12KW-30 LP1-EU/US
Solar Panel Specific Model DW-SP-500 DW-SP-500 DW-SP-500
Maximum Power（Wp） 500 500 500
Open-Circuit Voltage(Voc)(V) 51.01 51.01 51.01
Operating Current (Imp)（A） 11.68 11.68 11.68
Short-Circuit Current (Isc)（A） 12.46 12.46 12.46
Quantity Pcs 10 16 24
Size(mm) 2220*1102*35
Weight(KG) 27
Warranty time 25 years
Certificate IEC61215:2016;IEC61730-1/-2:2016;
Storage Battery
Model
 DW-10KWESS*1 DW-10KWESS*2 DW-10KWESS*3
Cell Type
 Li-ion(LFP)
Nominal Voltage（V）
 51.2
Normal Capacity
 200AH
Total Energy(KWH)
 10.24 20.48 30.72
Cycle times
 6000
Communication
 CAN /RS485
Standard Charging / Discharging Current
 100A/100A
Size(mm)
 360*190 x700 /SET
Weight(KG)
 98/SET
Water proof
 IP21
Warranty time
 10 years
Certificate
 UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
Hybrid Inverter Model DW－5KW-DY-EU DW－5KW-DY-US DW－8KW-DY-EU DW－8KW-DY-US DW－12KW-DY-EU
Battery Input Data Battery Voltage Range (V) 40~60 40~60 40~60
Max. Charging &Discharging Current (A) 120 190 240
PV String Input Data Max. DC Input Power (W) 6500 10400 15600
Rated PV Input Voltage (V) 370 (125~500) 370 (125~500) 550 (160-800)
MPPT Range (V) 150-425 150-425 200-650
PV Input Current (A) 13+13 26+26 26+13
AC Output Data Rated AC Output and UPS Power (W) 5000 8000 120000
Max. AC Output Power (W) 5500 8800 13200
AC Output Rated Current (A) 22.7 20.8 / 24 36.4 33.3 / 38.5 52.2
Max. AC Output Current (A) 25 22.9 / 26.4 40 36.7 / 42.3 /
Output Frequency and Voltage 50/60Hz; 220/230Vac 50 / 60Hz; 120 / 240Vac (split phase), 120 / 208Vac (2 / 3 phase), 220/230Vac (single phase) 50/60Hz; 220/230Vac (single phase) 50 / 60Hz; 120 / 240Vac (split phase), 120 / 208Vac (2 / 3 phase), 220/230Vac (single phase) 50/60Hz; L/N/PE 220/230Vac (single phase)
Grid Type Single Phase Split phase; Single Phase Single Phase Split Phase;Single Phase Three phase
Efficiency Max. Efficiency 97.60%
MPPT Efficiency 99.90%
Warranty 5 years
Water proof IP65
Size(mm) 330W×580H×232D 420W×670H×233D 330W×580H×232D 420W×670H×233D 464W×798.4H×300D
Weight(KG) 20.5 32 20.5 32 48.5
Certificate IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
